Cables and Plugs

Firecomms offers a range of high quality Plastic Optical Fiber cables. LC plugs, and pre‐assembled patch cords in both LC and RedLink^® styles. These products are suitable for use with Firecomms’ range of transceivers and other industry‐standard products.

Download Brochure >>

	Accessory	Part Number
	Plastic Optical Fiber (POF)	FC-500-0SB, FC-500-0DB	Product Information
FC-500-0SB, FC-500-0DB Firecomms POF is a high performance optical fiber available in both simplex and duplex variants. This optical fiber has a high‐purity 1 mm PMMA core with specially selected transparent polymer cladding. The core and cladding are surrounded by a 2.2 mm polyethylene (PE) jacket. Data Rate Type Orientation Colour Data Sheet Contact Sales Where to Buy
	Cable Assemblies	FD-XXX-XXX	Product Information
FD-XXX-XXX Firecomms Cable assemblies are available in a convenient range of lengths for use with RedLink^® or Versatile Link transmitters and receivers, and LC transceivers. Data Rate Type Orientation Colour Data Sheet Contact Sales Where to Buy
	Crimpless Friction Plug	FP-00C-HS0, FP-00C-GS0,FP-00C-TS0	Product Information
FP-00C-HS0, FP-00C-GS0,FP-00C-TS0 The Firecomms crimpless plugs are for use with standard 1 mm core with 2.2 mm plastic optical fiber jacketing. These series of plugs were designed with ease of use in mind. The simple latching function securely fixes POF cable to the plug without the need for a crimp tool. This flexibility allows for a reduction in labor and associated cost. These series of plugs are compatible with RedLink® or Versatile Link transmitters and receivers. Data Rate Type Orientation Colour Data Sheet Contact Sales Where to Buy
	Simplex Friction Plug (non-latching)	FP-00C-VS0, FP-00C-US0	Product Information
FP-00C-VS0, FP-00C-US0 The Firecomms simplex friction plug offers a fast and secure link providing a moderate retention force using plastic optical fiber (POF). It is available in both grey and blue colours, and compatible with horizontal, vertical and tilted housings. Data Rate Type Orientation Colour Data Sheet Contact Sales Where to Buy

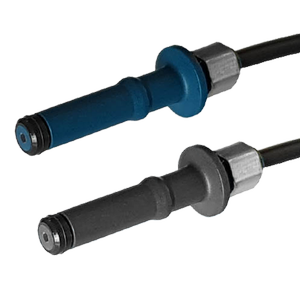

	Simplex Sealed Friction Plug	FP-00C-JS0, FP-00C-KS0	Product Information
FP-00C-JS0, FP-00C-KS0 The simplex sealed friction plug is used to implement easy-to-use and secure links using plastic optical fiber (POF). A key feature of the plug is the added rubber seal that provides protection against the ingress of external fluids or particulates that may contaminate the optical surfaces of the fiber facet and active components. Data Rate Type Orientation Colour Data Sheet Contact Sales Where to Buy
	SMI Passives	SMI PASSIVES	Product Information
SMI PASSIVES Data Rate Type Orientation Colour Data Sheet Contact Sales Where to Buy

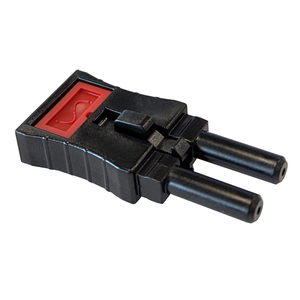

	Duplex Latching and Non-Latching Plugs	FP-00C-RD0, FP-00C-SD0	Product Information
FP-00C-RD0, FP-00C-SD0 Firecomms duplex latching and non-latching plugs offer robust performance for applications requiring high retention force. The plug is suitable for use with 2.2 mm Plastic Optical Fiber (POF). Data Rate Type Orientation Colour Data Sheet Contact Sales Where to Buy
	Simplex Latching Plug	FP-00C-XS0, FP-00C-YS0	Product Information
FP-00C-XS0, FP-00C-YS0 The Firecomms simplex latching plug offers robust performance for applications requiring high retention force. The latching mechanism provides a securely mated fit once inserted into a RedLink connector. The simplex latching plug is available in both blue and grey colours. Data Rate Type Orientation Colour Data Sheet Contact Sales Where to Buy
	LC Plug	FP-00C-LD0	Product Information
FP-00C-LD0 Firecomms LC plugs can be assembled easily onto a plastic optical fiber (POF) duplex cable to prepare it for use with Firecomms LC transceivers. The LC system offers a compact termination ideal for applications requiring robust plug retention and endurance against vibrations and mechanical shock. Data Rate Type Orientation Colour Data Sheet Contact Sales Where to Buy
